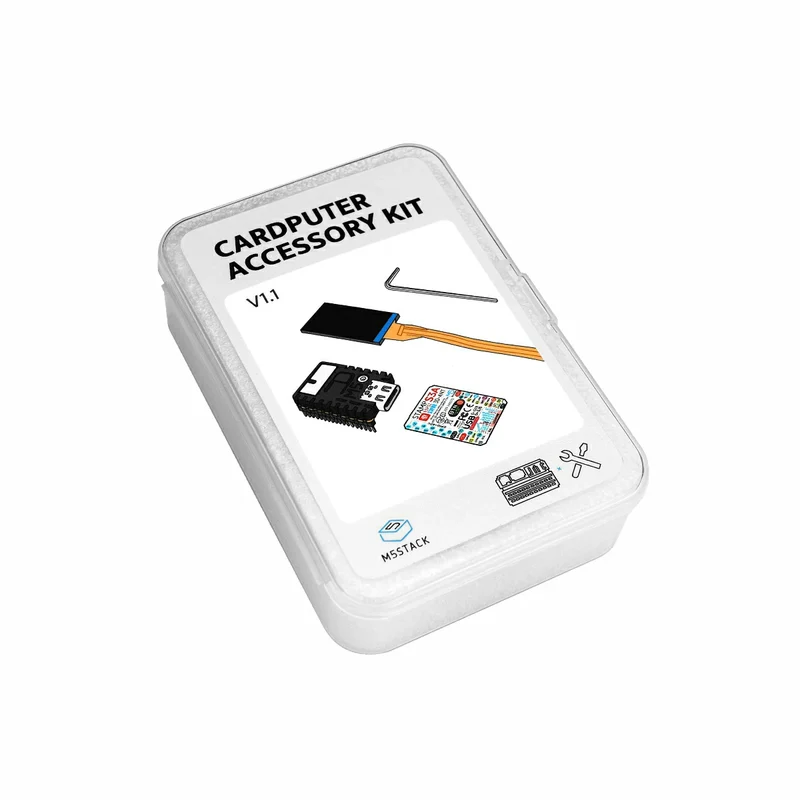

Cardputer Accessory Kit v1.1 (M5StampS3A + Display)

Description

Cardputer Accessory Kit v1.1 is a kit for repairing Cardputer v1.1 / Cardputer-Adv, specifically addressing issues such as bent or broken header pins caused by frequent plugging/unplugging of the Stamp-S3A main controller, as well as the screen FPC connector coming off. A usage tutorial is included later in this document to help users complete repairs and replacements on their own.

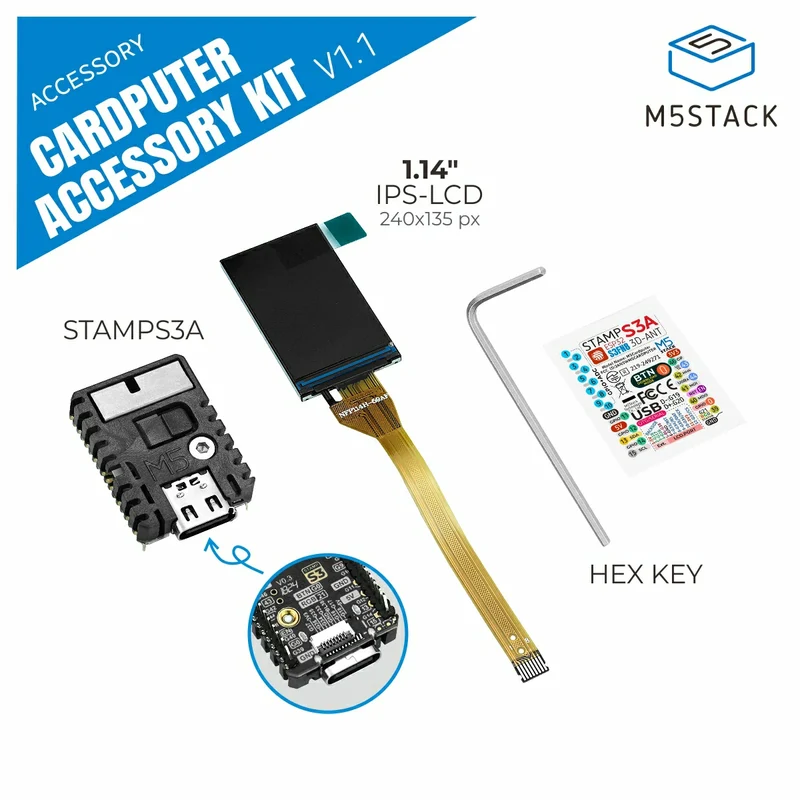

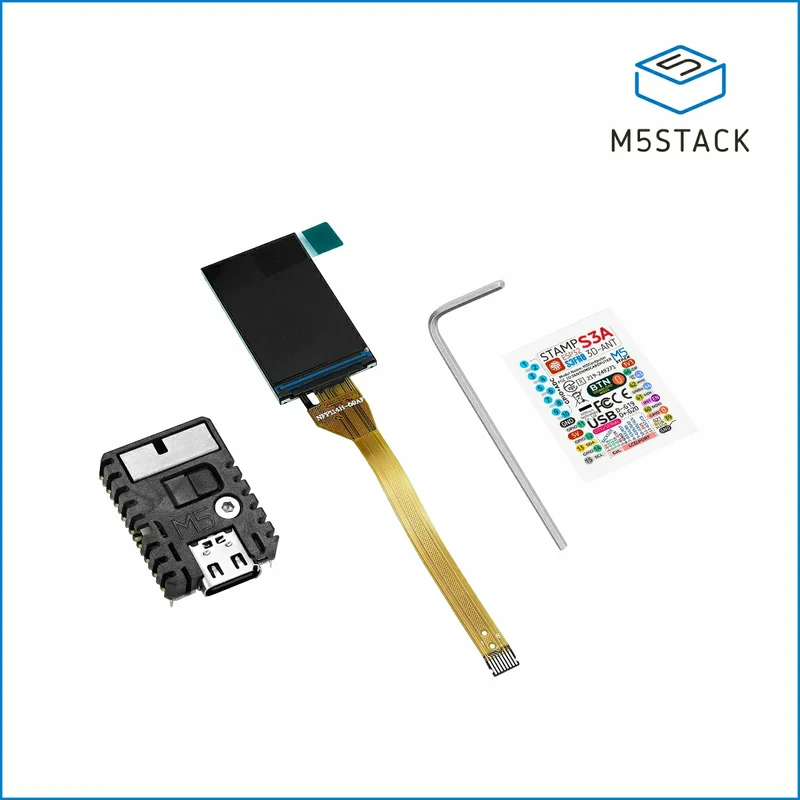

Includes

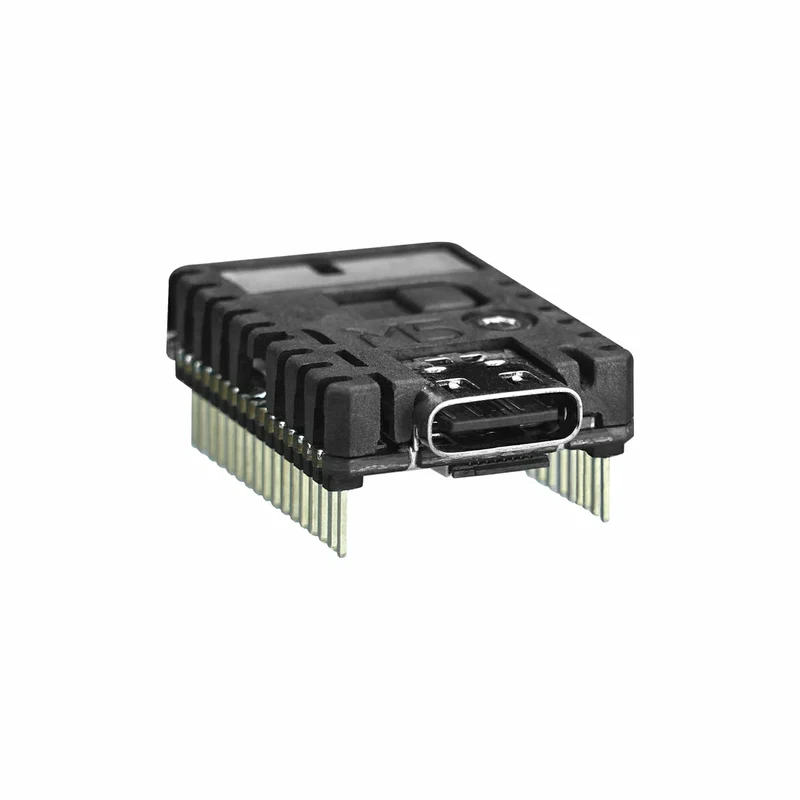

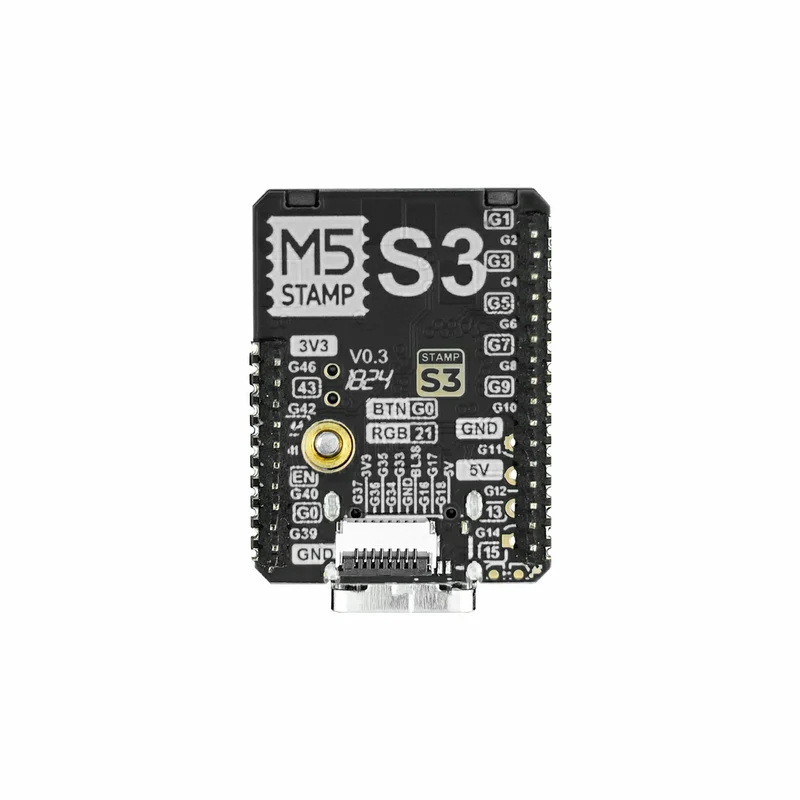

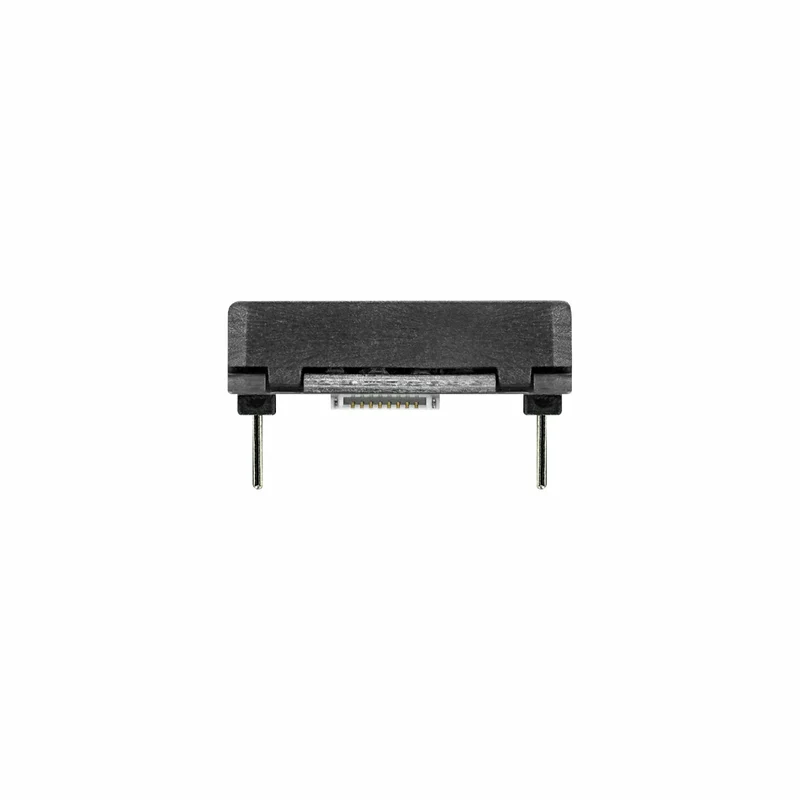

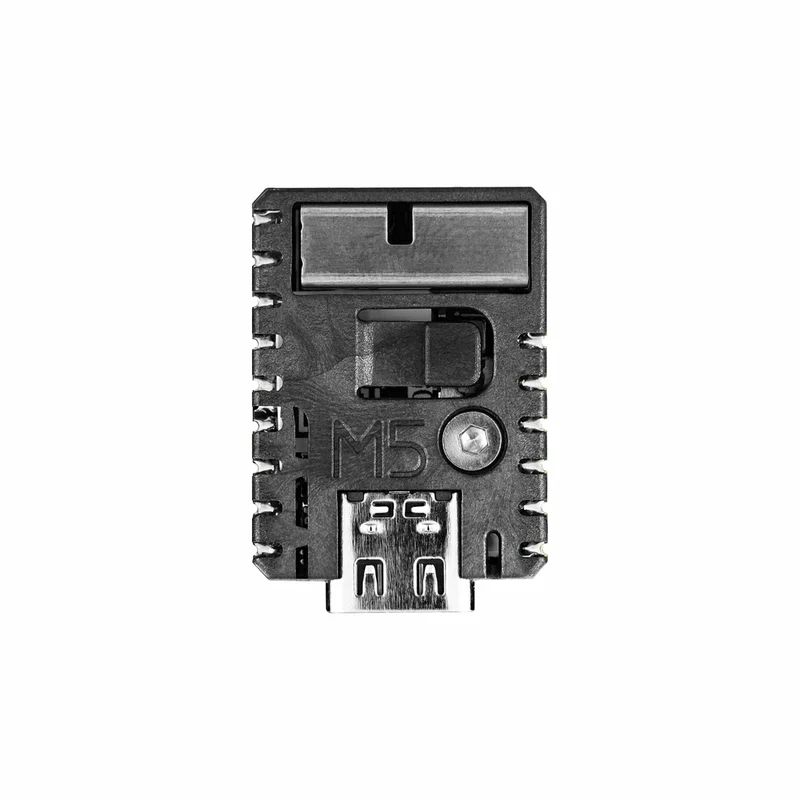

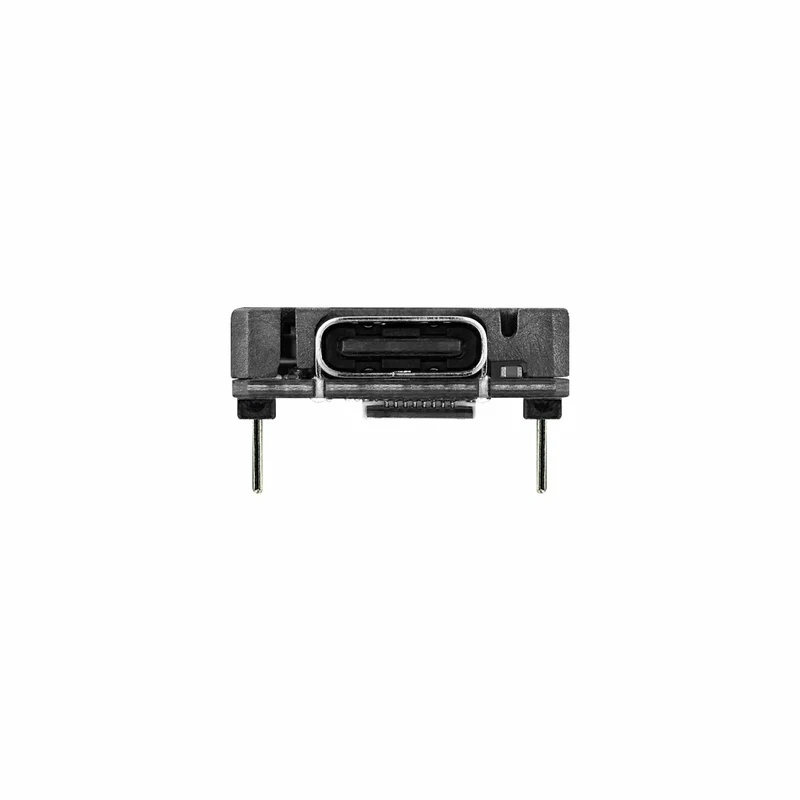

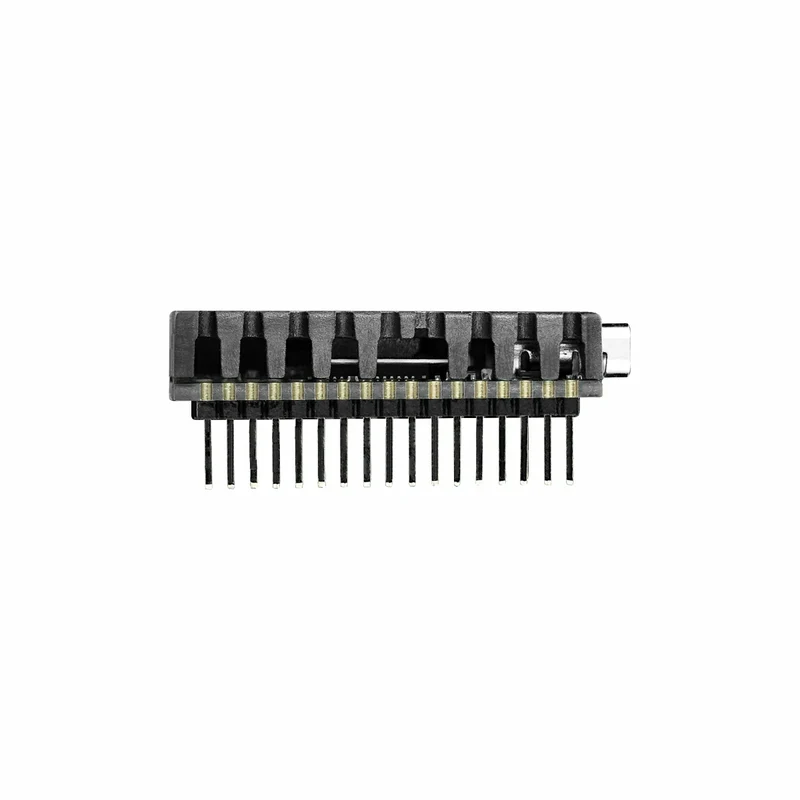

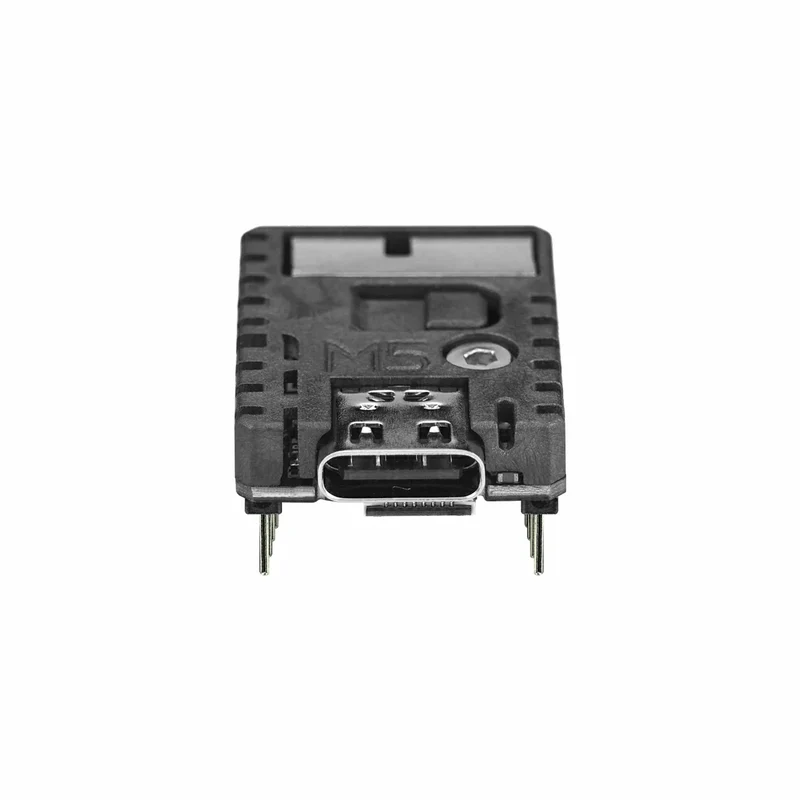

• 1 x Stamp-S3A
• 1 x ST7789V2 1.14 Inch Screen
• 1 x Hex Key L-Shape 1.5mm (For M2 Screw)
• 1 x Pin Sticker

Applications

• Cardputer v1.1 / Cardputer-Adv repair

Specifications

Specification	Parameter
Product Size	Stamp-S3A: 26.0 x 18.0 x 4.7mm 1.14 Inch Screen: 17.6 x 31 x 1.6mm
Product Weight	Stamp-S3A: 3.4g 1.14 Inch Screen: 1.7g
Package Size	94.0 x 64.0 x 26.0mm
Gross Weight	27.6g
